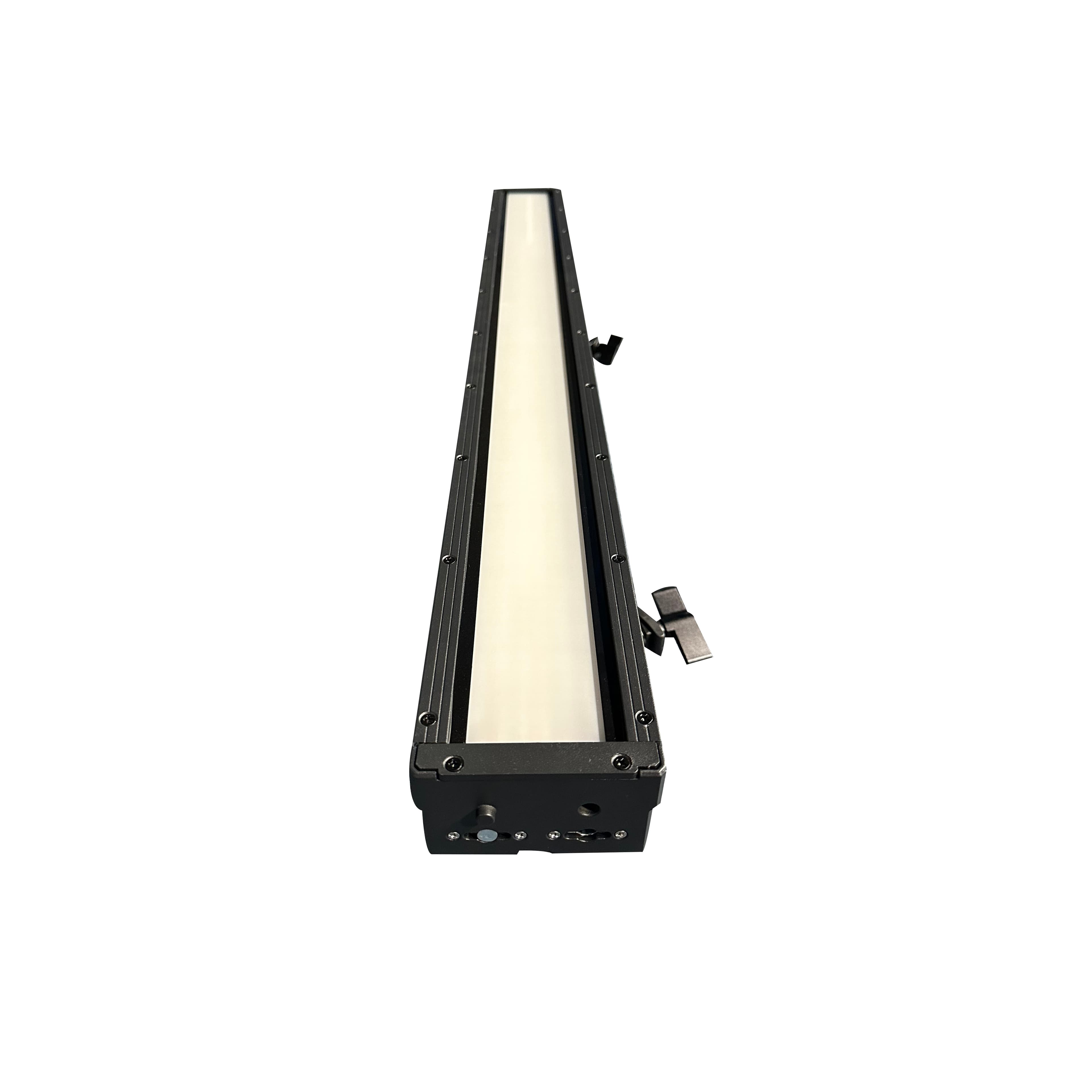

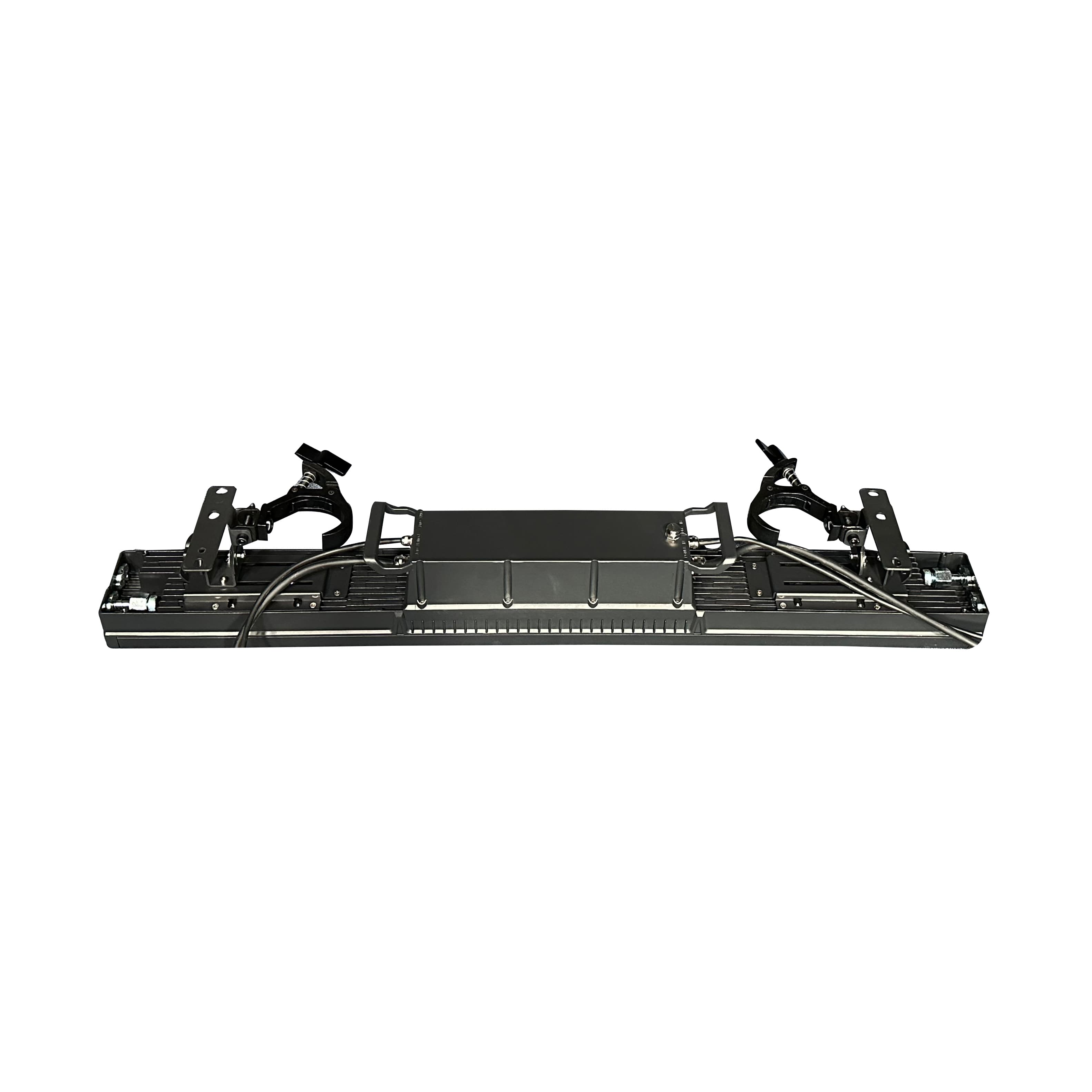

Model: LED-500SB
The program uses an intelligent constant power algorithm for the brightness of the LED light source, so that each color can exert its maximum brightness. Temperature protection, intelligent constant temperature control, intelligent fan function. The industry's first, luminous area cutting function, so that the effect of running code is richer.
| Power | Voltage Voltage: AC100-240V/50HZ~60HZ Power Red monochrome power 285W, green monochrome power 285W, blue monochrome power 285W, white monochrome power 285W, amber monochrome power 420W, maximum total power 470W. Light source Five-color high-power LED light source; RGB 3-in-1 672pcs 1.5W LED; W224pcs 1.5W LED; A336pcs 1.5W LED. |
| Control Mode | Channel mode 7, 8, 10, 18, 25, 28, 83, 179CH, 8 channel modes are optional, 28 channels are factory default. Control mode International standard DMX512 signal, RDM function, support DMX512 signal line upgrade software Waterproof level IP66 |
| Product | Product size: length 100 * width 10.5 * height 16CM Net weight 8.3KG (including folding calmp) |
| Effect | Beam angle (RGB) 140°, W120°A120° Control (RGB) 32 zone can be controlled individually, W32 zone can be controlled individually, A48 zone can be controlled individually. Dimmer 0-100% linear dimming. Electronic Frost 0-100% linear adjustment. |
| Display | Display Four waterproof touch buttons, support Chinese and English display. |
IP65LED-1810BF
IP65LED-700GF
Automatic operation and color change Adjustment angle Up and down adjustment >±45° Noise decibel 0bBi(0.5m) Working environment -55° -+55° Heat dissipation Conductive heat dissipation Casing material Die-casting aluminum casing Internal protection Electronic moisture-proof process treatment
IP65LED-300W
Over-temperature Protection: If the temperature exceeds the set limit, LED power gradually reduces to half-power; once the temperature drops below the set limit, power gradually returns to normal Fan Control: Fan runs at full speed when temperature ≥40°C; fan stops when temperature ≤35°C
IP65LED-300G
Overheating Protection When the temperature exceeds the set temperature, the power of the lamp beads will slowly decrease to the half-power state. When the temperature is lower than the set temperature, the power of the lamp beads will slowly return to the normal state. Scene Edit It can edit offline scenes, without the need for the console to play scenes in turn Fan Control When temperature≥40°，fan runs at full speed;When temperature≤40°, fan stops running.
