1. Large-scale Outdoor Events & Music Festivals,2. Professional Theaters & Multi-purpose Performing Arts Centers,3. Stadiums & Major Sports Broadcasts,4. TV Studios & High-end Livestreaming Sets,5. Cultural Tourism & Architectural Lighting

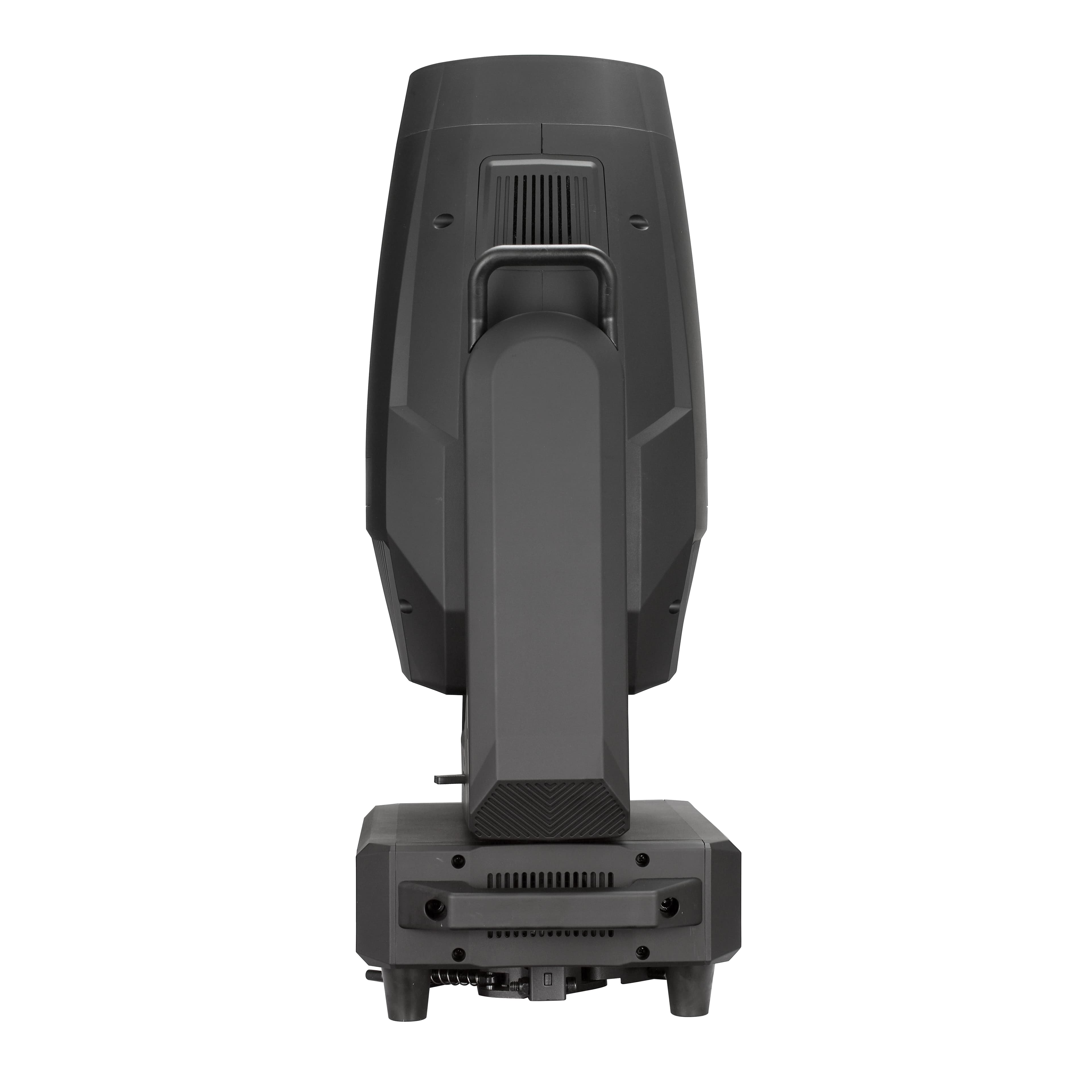

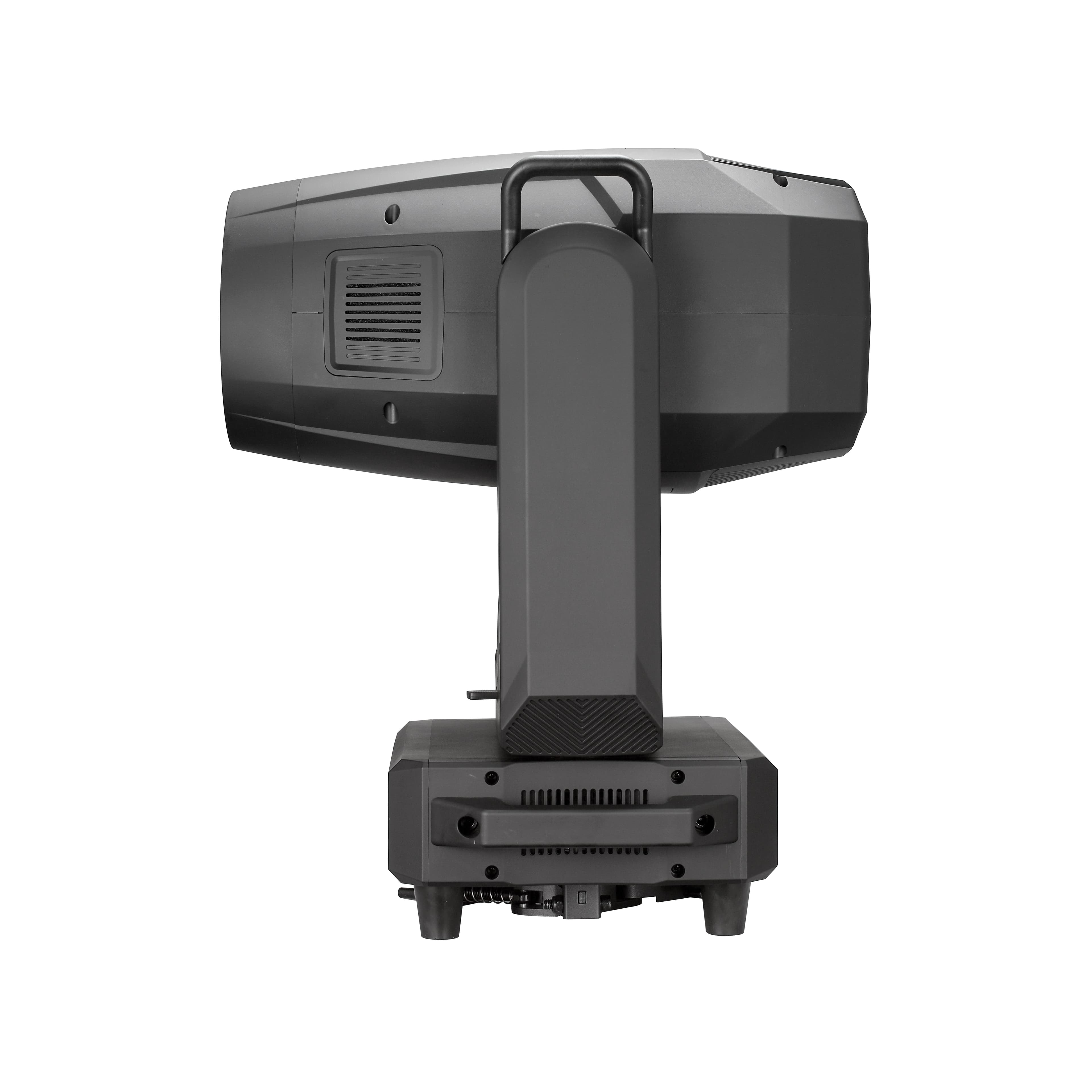

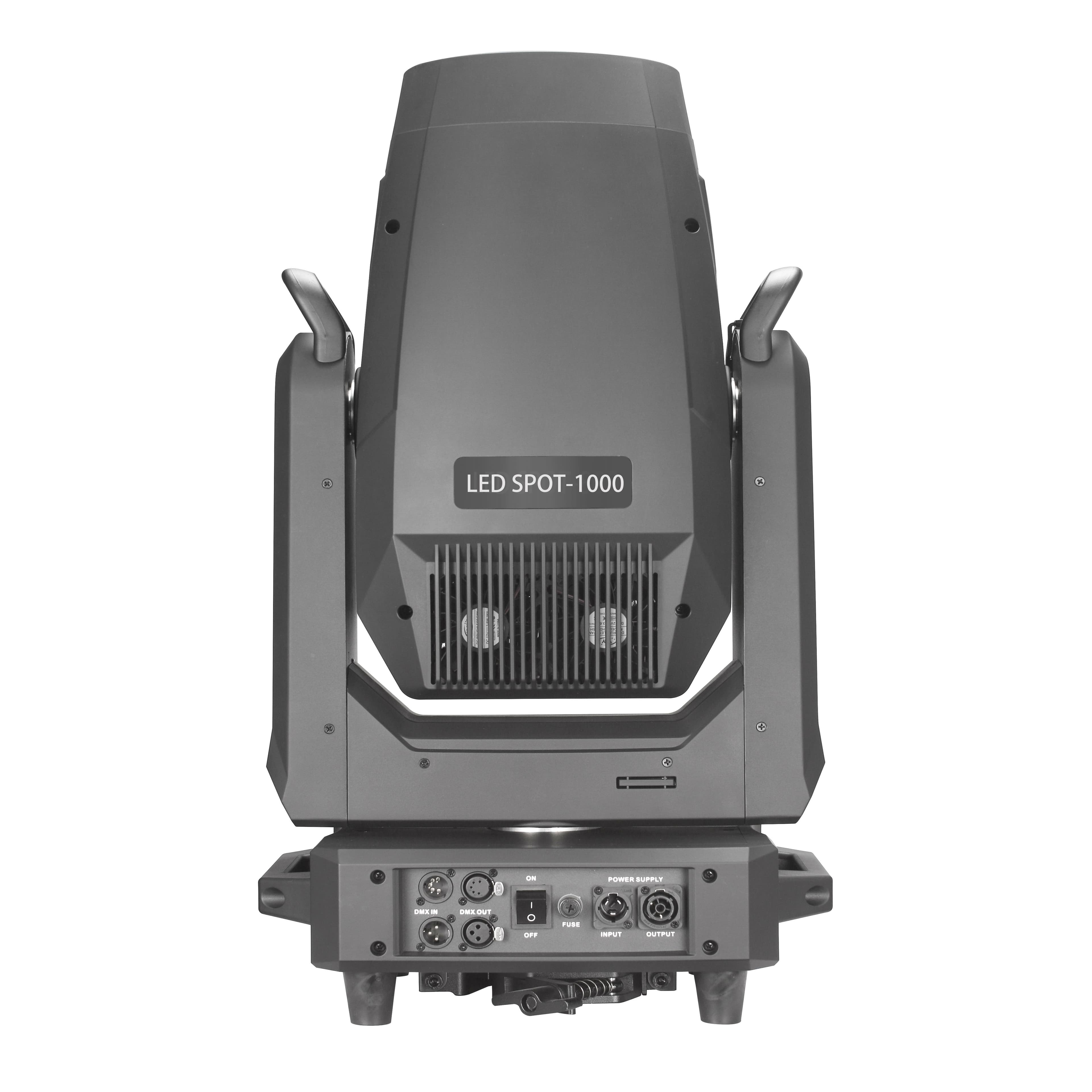

Model: LED-SPOT1000
1: Focus on Power & Precision (Comprehensive) "Unleash 1000W of pure intensity with 225,200 Lux output at 5 meters. Featuring a precise 4°-40° zoom, full CMY/CTO linear mixing, and a 4-blade framing shutter system. " 2: Focus on Optics & Color Quality (Artistic) "Experience true color fidelity with Ra90 High CRI mode. From razor-sharp beams to soft washes, master your look with 7 rotating gobos, triple prisms, and independent frost." 3: Short & Impactful (For Spec Sheets/Headers) "1000W LED Powerhouse: 225K Lux, Ra90 CRI, and Full Framing Shutter." 4: Focus on Reliability & Control (Technical) "Built for the road. 20,000-hour lifespan, RDM protocol support, and seamless 0-100% linear dimming."
| Light Source & Electrical | Input voltage: 100~240VAC，50/60Hz Rated power: 1200W@220V optics Light source: 1000W LED Rated lifespan: 20000 hours Illumination: 225200LX at a distance of 5 meters |
| Optical | Beam angle: 4°~40° Color rendering index: Ra: 70 in standard mode; High display mode: Ra:90 |
| effect | Rotation angle: 540 ° horizontally and 270 ° vertically; Equipped with automatic return function Strobe: 0~25HZ Dimming: 0-100% linear adjustment Color: 1 color palette (5 colors+white light), linear CTO; Linear CMY Pattern: 1 fixed pattern plate (6 patterns+flowing patterns+white light); 7 rotating patterns, each glass pattern can independently rotate forward and backward Prism: 3 Prisms Focusing: DMX linear adjustment Atomization: Independent atomization Cutting: 1 set of four sided cutting system, capable of 120 ° rotation |
| Control & DMX | Control method: DMX512, RDM Control Protocol Channel: 35CH physical property Protection level: IP20 Shell: High temperature resistant engineering plastic Power connection: PowerCON power input/output Signal connection: Three core&Five core DMX signal input/output Net weight of product: 28kg Work environment:- 20℃~40℃ Lamp size: 383x270x670mm Standard configuration: 1PCS power cord, 1PCS safety rope, 1PCS DMX signal cable, 1PCS integrated folding light hook |
IP20LED-150B
Automatically adjust the fan rotation speed according to the temperature of the lamp, built-in overheating protection intelligent system/intelligent temperature and noise balance module
IP20LED-150S
Automatically adjust the fan rotation speed according to the temperature of the lamp, built-in overheating protection intelligent system/intelligent temperature and noise balance module
IP20S1000
Adjustable Pan and Tilt speeds; Use powerful silent fans, display the LED temperature and reduce power when overheated to ensure the service life of the LED.
IP20LED-500P
Adjustable Pan and Tilt speeds; Use powerful silent fans, display the LED temperature and reduce power when overheated to ensure the service life of the LED.
Our lighting engineers will recommend the perfect configuration for your venue and budget.
